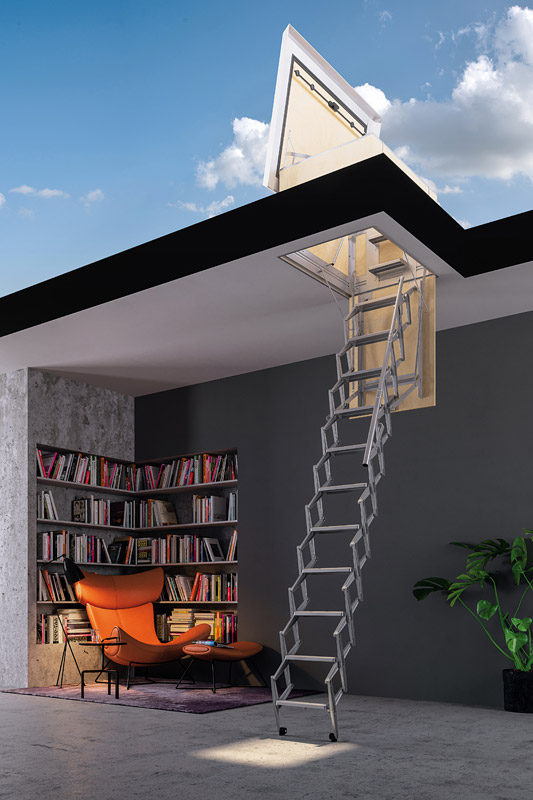

Roof loft ladder: TERRACE

Roof loft ladder with 11 steps and a mobile structure made of galvanised 15/10 stamped sheet metal and with spring cushioning and recall to make opening and closing the ladder easy.

The structure of the flat roof loft ladder is made with 10/10 galvanised steel inner frame and poplar plywood panels on the sides (15 mm thickness) certified for minimum formaldehyde emission (class E1, DIN EN 13986:2005). The upper hatch is made with plywood panel (15 mm thickness) certified for minimum formaldehyde emission (class E1, DIN EN 13986:2005) covered with a galvanised steel sheet lining. The upper hatch closing can be made thanks to a “cremone” handle.

To help you ascend and descend, it has a telescopic handrail on the right-hand side, shock-absorbing springs for easy opening and closing, exit handles and landing steps (for structure > 60 cm).

The roof loft ladder can be made with 4 section folding structure, according to the dimensions in the table below.

The roof loft ladder is certified according to European Norms (UNI EN 14975:2007) and grant a load capacity of 150 kg (tested with static test load of 260 kg).

The terrace retractable ladder is delivered fully assembled, ready to be installed.

• 15/10 embossed sheet steel structure protected by electroplating
• Roof access structure made with 10/10 galvanised steel inner frame and upper hatch lining (15 mm) poplar plywood panels
• Landing steps (for structure ≥ 60 cm)
• Exit handles
• Plywood upper hatch with galvanised steel sheet lining
• “Cremone” handle
• Prime poplar plywood (thickness 15 mm) hatch panel
• Bolted levers for easy adjustment
• Shock-absorbing springs for easy opening and closing
• Gas-assisted spring (for dimensions >70×100 cm)
• Loft ladder maximum opening angle adjustment stay-rod
• L-shaped anchorage brackets
• Left-hand side telescopic handrail
• Non-slip shaped tread
• Support feet
